Load Capacity:150N/mm2
VLinear Velocity:Grease Lubrication:2.5 m/s
Max PV value :Grease Lubrication 2.8N/mm2 ·m/s
Oil Lubrication:10N/mm2 ·m/s
Heat-conducting Coeficient:47W/(m·k)

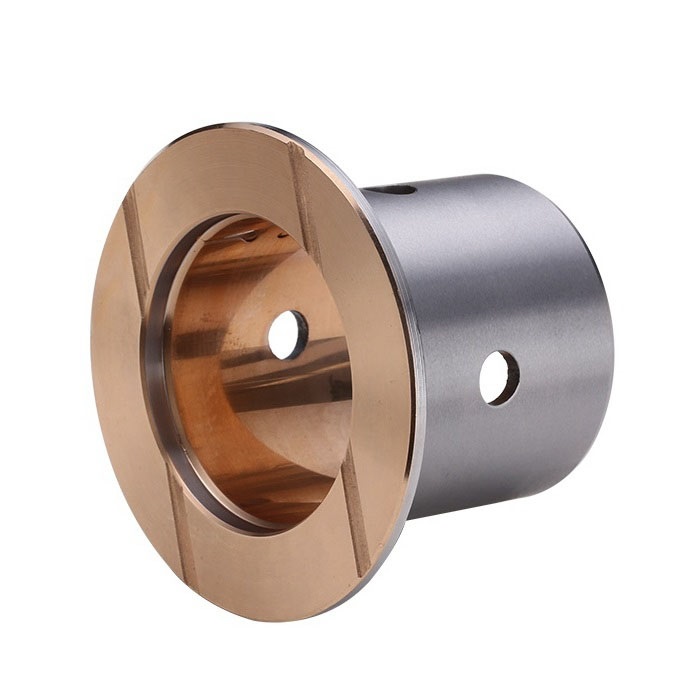

SF30T bimetal bushing is backed with high quality low carbon steel with tin-lead-bronze
alloy(CuSn10Pb10)sintered on its surface . It has high fatigue strength, load capacity and
impact strength. The product is applied to track roller, air compressor , especially replaced the
Centrifugal casting bimetal bushing for the track roller application. the alloy thickness becomes
uniform compareing with the centrifugal casting bimetal bushing, and save lot of material,
which make the product cost performace higher.
