Lead bronze zlloy:CuPb10Sn10 or CuSn6Zn6Pb3
Load Capacity:150N/mm2
Hardness alloy:HB60~90
Max. temp:250℃

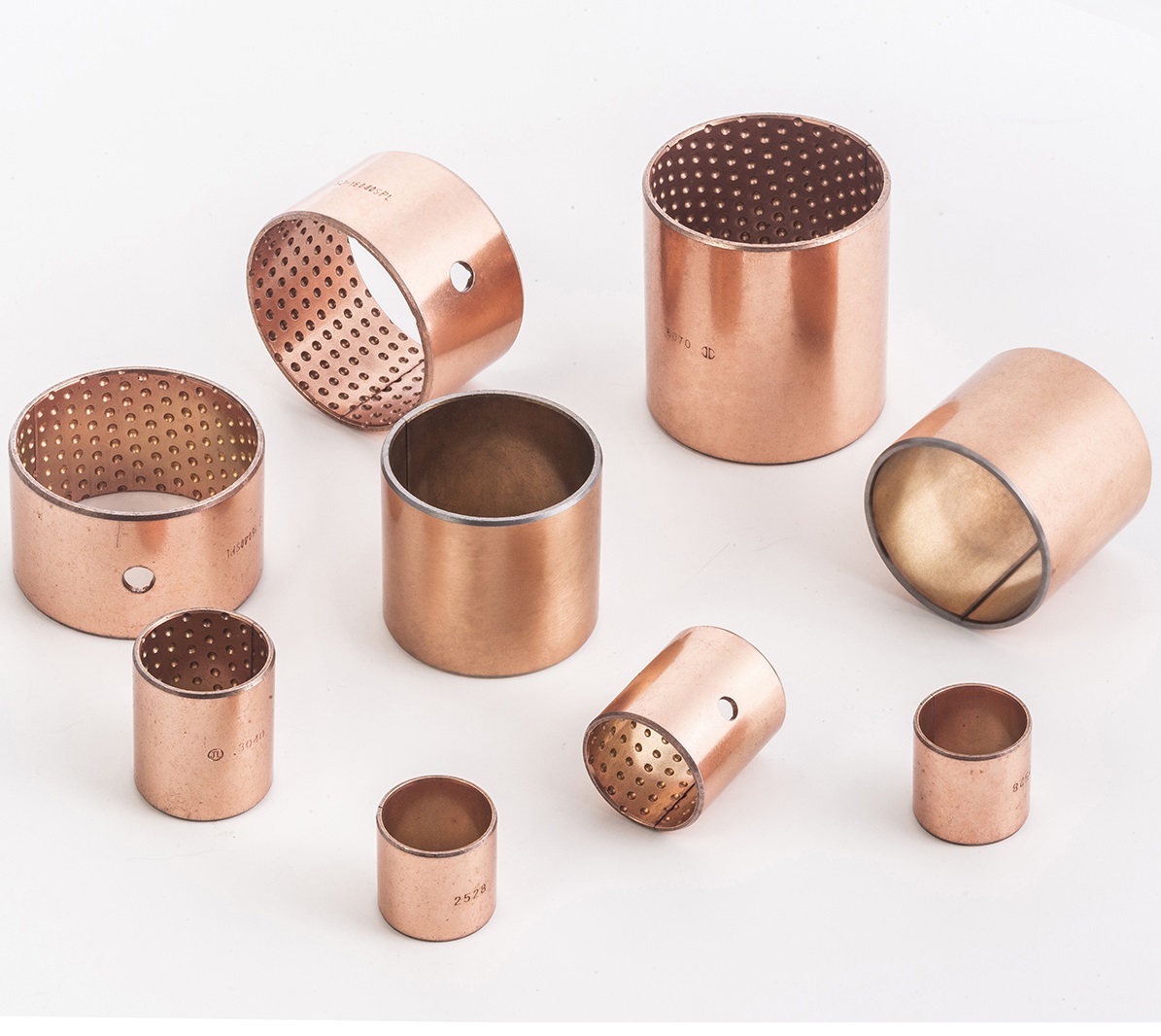

SF-30 bimetal bearing used low carbon steel plank as base material is a steel and copper alIoy
product, whose surface is agglomerated by CuPb10Sn10 or CuSn6Zn6Pb3 material. The product
is one of the strongest loadability of bimetal bearings, and applicable for balance bridge liner,
gasket shim; engaged wheel of dozer, support traction wheel; auto steel plate liner. It is a kind of
high loading and Iow speed kinematics bearing of extensive purpose.
It may supply the products: upright liner, turn-up shaft sleeve, plate, shaft tile, slide and steel
liner combination.
