Load Capacity:120N/mm2
Temp Limit:-195℃ ~270℃
Speed Limit:2.5m/s
Friction Coet(μ):0.04~0.20
PV Limit(dry):3.0N/mm2 · m/s
PV Limit(oil):40N/mm2 · m/s

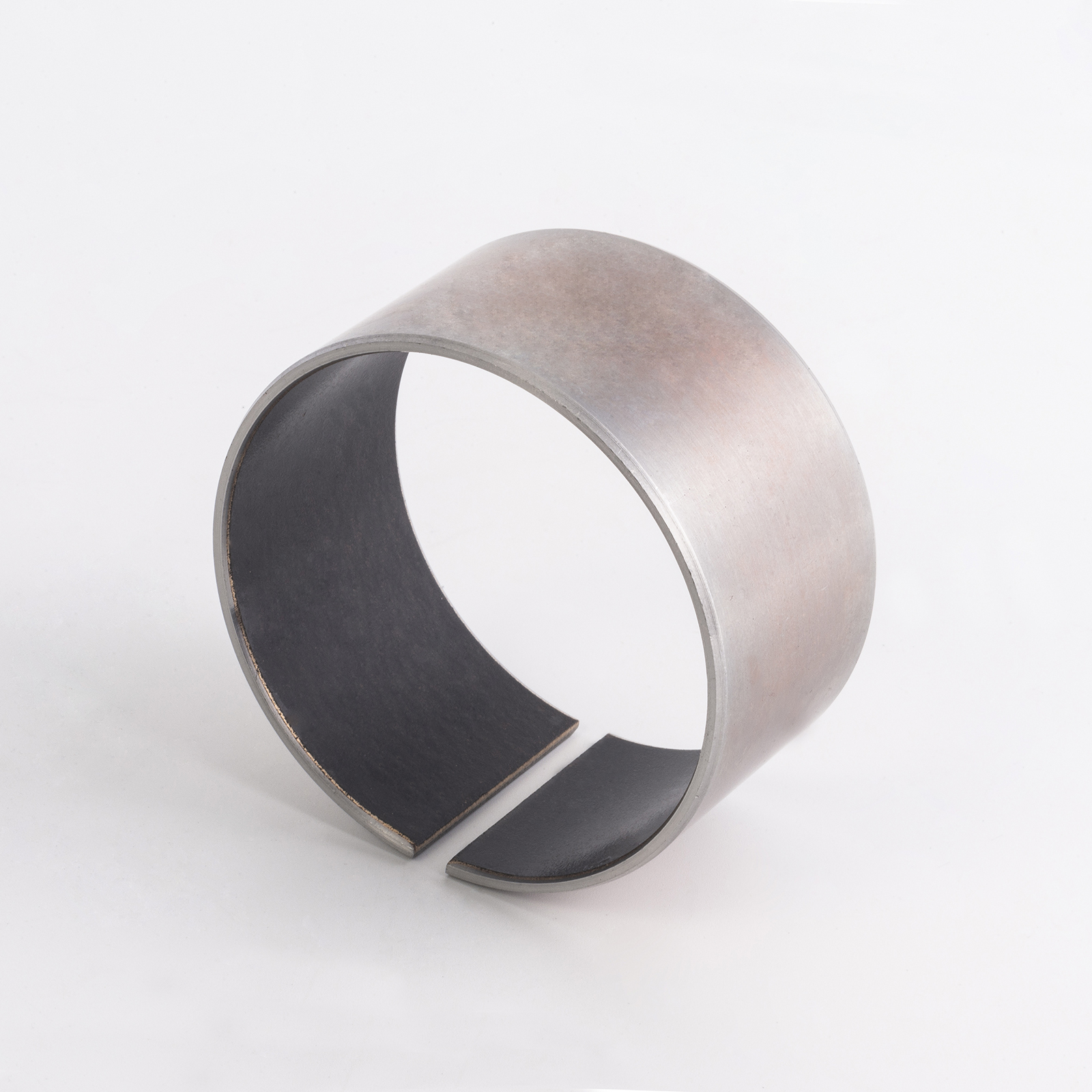

SF-17 stainless steel pb-free self-lubricating bearing used stainless steel material as base,
agglomerated by corrosion resistant alloy powder and rolled by low friction materials giving
priority to PTFE at the surface is a quite efiective corrosion resisting material passing through reel
forming, characterized by oil-resisting, acid-resisting, alkaline-resisting and ocean water resisting.
The surface of PTEE material js free of lead. It is most suitable for food beverage machine, fluid
valve of measuring acid and alkaline flow in chemical industry pharmacy machine. printing and
dyeing machine, chemical industry machine and corrosion resisting sliding position in ocean
industry.
It may supply the products: upright liner, turn-up shaft sleeve, plate, shaft tile, slide and steel
liner combination.
