Load Capacity:140N/mm2
Temp Limit:-195℃ ~280℃
Speed Limit:5m/s
Friction Coet(μ):0.02~0.20
PV Limit(dry):3.6N/mm2 · m/s
PV Limit(oil):50N/mm2 · m/s

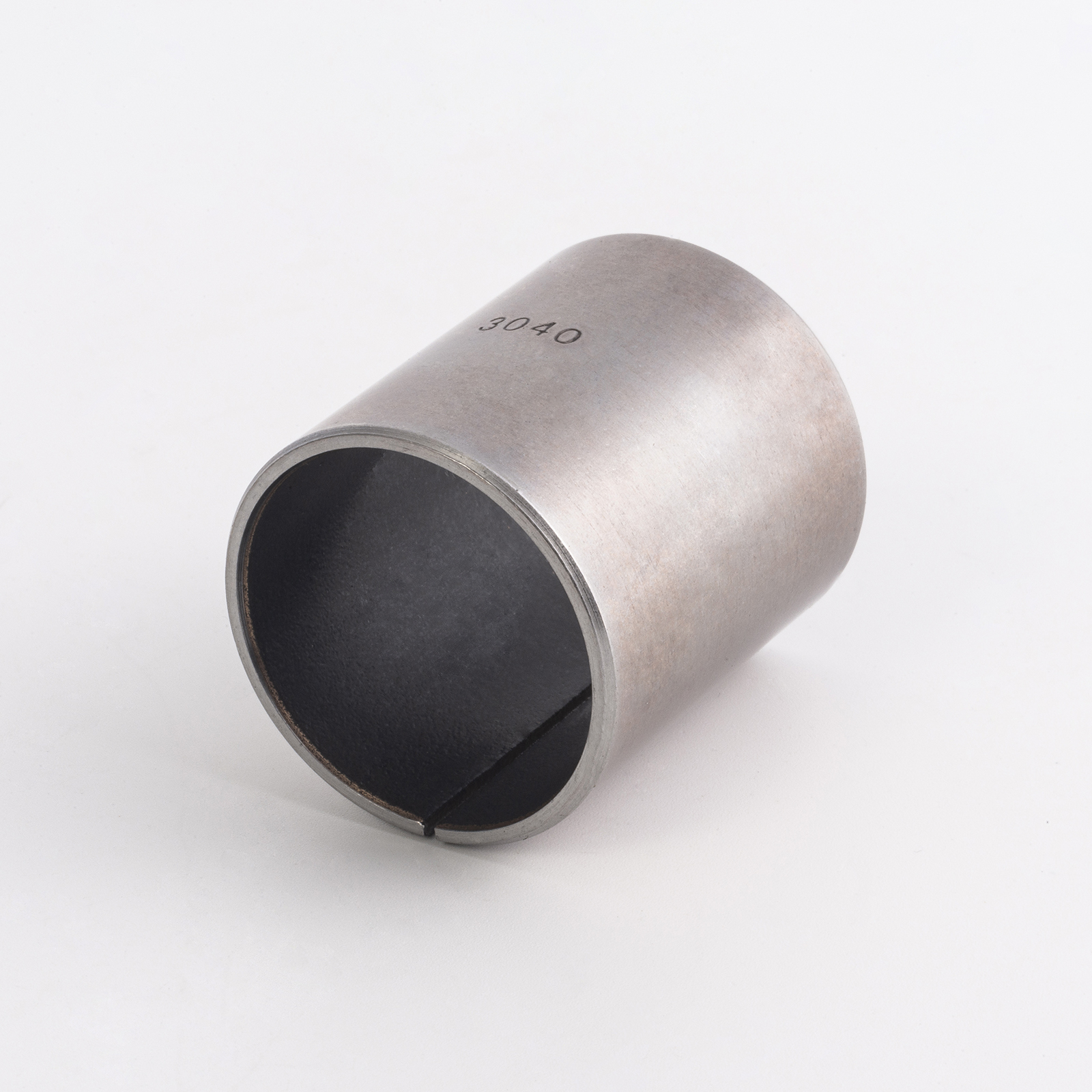

Application feature: the product uses stainless steel as base, agglomerated by multi-hofe bronze
layer and rolled by mixture giving priority to PTFE at the surface and is free of lead. The product
is applicable for food machine, pharmacy machine, printing and dyeing machine and so on. It
may supply the products: upright liner, turn-up shaft sleeve, plate, shaft tile. slide and steel liner
combination.
Iiner combination．
